Slab Leak Detection in Turlock, CA

Scientific, Non-Destructive Under-Slab Leak Diagnostics

Discovering water bubbling through grout lines or noticing an uncharacteristic surge on your city utility bill can be alarming. In past decades, plumbers frequently resorted to sledgehammers and pneumatic jackhammers, digging speculative trenches through finished hardwood or ceramic flooring in search of a leaking pipe. Today, professional slab leak detection Turlock combines acoustic frequency filtering, digital electromagnetic line locators, and calibrated pressure diagnostics to locate subterranean fractures with mathematical precision.

By pinpointing the exact coordinate of a leak before initiating repairs, we ensure that concrete opening is kept to the absolute minimum necessary—or avoided altogether in favor of an overhead bypass. If you are experiencing unexplained moisture or a rapidly running water meter, scheduling specialized slab leak repair in Turlock restores control before structural settling impacts your foundation.

The Five-Phase Diagnostic Protocol

Accurate leak under slab detection Turlock demands a systematic, step-by-step methodology rather than hasty assumptions. Our technicians utilize a standardized five-stage diagnostic protocol:

1. 1

   Municipal Water Meter Verification

   We begin by verifying active flow at the municipal meter. By shutting off every interior fixture and observing the low-flow dial or digital consumption display, we establish whether water is actively discharging from the plumbing system.

2. 2

   System Isolation (Hot vs. Cold Supply)

   The cold water feed supplying your water heater is isolated using precision gauge manifolds. By monitoring pressure drop independently on the hot water distribution network versus the cold water trunk line, we immediately narrow the leak's origin to a specific half of your plumbing infrastructure.

3. 3

   Hydrostatic & Pneumatic Pressure Testing

   The isolated plumbing circuit is pressurized with nitrogen or compressed air while monitored with high-resolution digital gauges. A dropping pressure curve confirms the presence and relative severity of the subterranean breach.

4. 4

   Electro-Acoustic Ground Microphone Listening

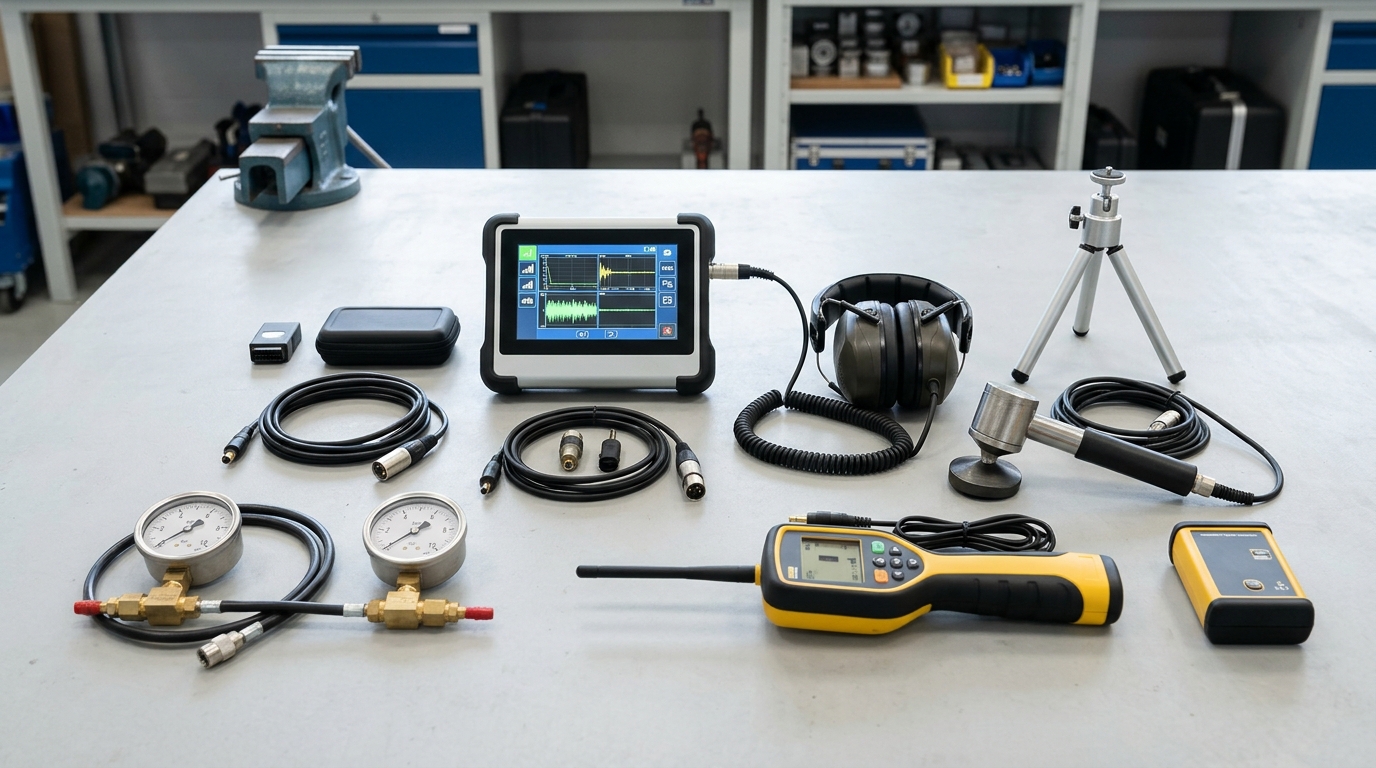

   Water escaping under pressure creates distinct acoustic frequencies as it strikes sub-slab sand, gravel, and concrete. Our electronic leak detection Turlock specialists scan the floor using frequency-tuned ground sensors and noise-canceling headphones, filtering out background street ambient noise to zero in on the leak epicenter.

5. 5

   Thermal Imaging & Electromagnetic Line Tracing

   For thermal water lines, calibrated infrared imaging cameras display heat bloom signatures radiating through solid concrete. Simultaneously, electromagnetic line locators trace the exact physical path of the buried copper tubing, creating a complete three-dimensional map of your sub-slab infrastructure.

Why Non-Invasive Location Keeps Concrete Breaking to a Minimum

A poured concrete slab provides fundamental structural support to your home's load-bearing walls and roof trusses. When an inexperienced contractor begins chipping concrete without verifying line paths, they risk severing adjacent plumbing loops, electrical conduits, or tension cables embedded in post-tension foundations.

Conducting a meticulous slab leak test Turlock ensures that if direct excavation is chosen, the work area is limited to a neat, surgical opening roughly twelve inches square. More importantly, precise mapping gives homeowners the exact data required to evaluate whether a non-invasive slab leak reroute or an overhead modern repiping system offers a superior financial and structural outcome.

What Your Comprehensive Leak Detection Report Includes

Following our electronic inspection, you receive a detailed, professional leak diagnostic report. This document is crucial for securing permits and navigating claims with your insurance adjuster:

• Pinpointed Failure Coordinate: Exact room, floor tile, or architectural measurement identifying where the subterranean line has breached.
• Thermal & Acoustic Documentation: High-resolution infrared heat maps and pressure-drop logs verifying active water escaping under the slab.
• Pipe Material & Estimated Depth: Verification of whether your system utilizes Type L or Type M copper tubing, galvanized iron, or early plastic composites, along with depth beneath the concrete sub-base.
• Itemized Repair Recommendations: Clear engineering options comparing direct spot excavation against an overhead attic bypass, detailing pros and cons for your specific layout.

Related Foundation Plumbing Services in Turlock

Depending on your diagnostic findings, related specialized services include:

• Hot Water Slab Leak Repair: Pinpointing thermal line ruptures causing hot floor areas and nonstop water heater operation.
• Slab Leak Rerouting: Bypassing ruptured under-slab copper lines through attic spaces and walls.
• General Water Leak Detection: Finding hidden moisture leaks inside interior walls, ceilings, and yard supply lines.
• Slab Leak Insurance Help: Organizing diagnostic data and photos for smooth insurance claim processing.
